Quick Release Valves are critical components in various industries, offering a simple yet effective solution to control fluid or gas flow in pressurized systems. These valves are engineered to quickly release pressure or shut off a system when needed, ensuring safety and efficiency. While the function of a quick release valve may seem straightforward, it plays a crucial role in everything from automotive applications to industrial machinery and pneumatic systems. This article delves into the importance of quick release valves, their mechanisms, and the value they bring to various systems.

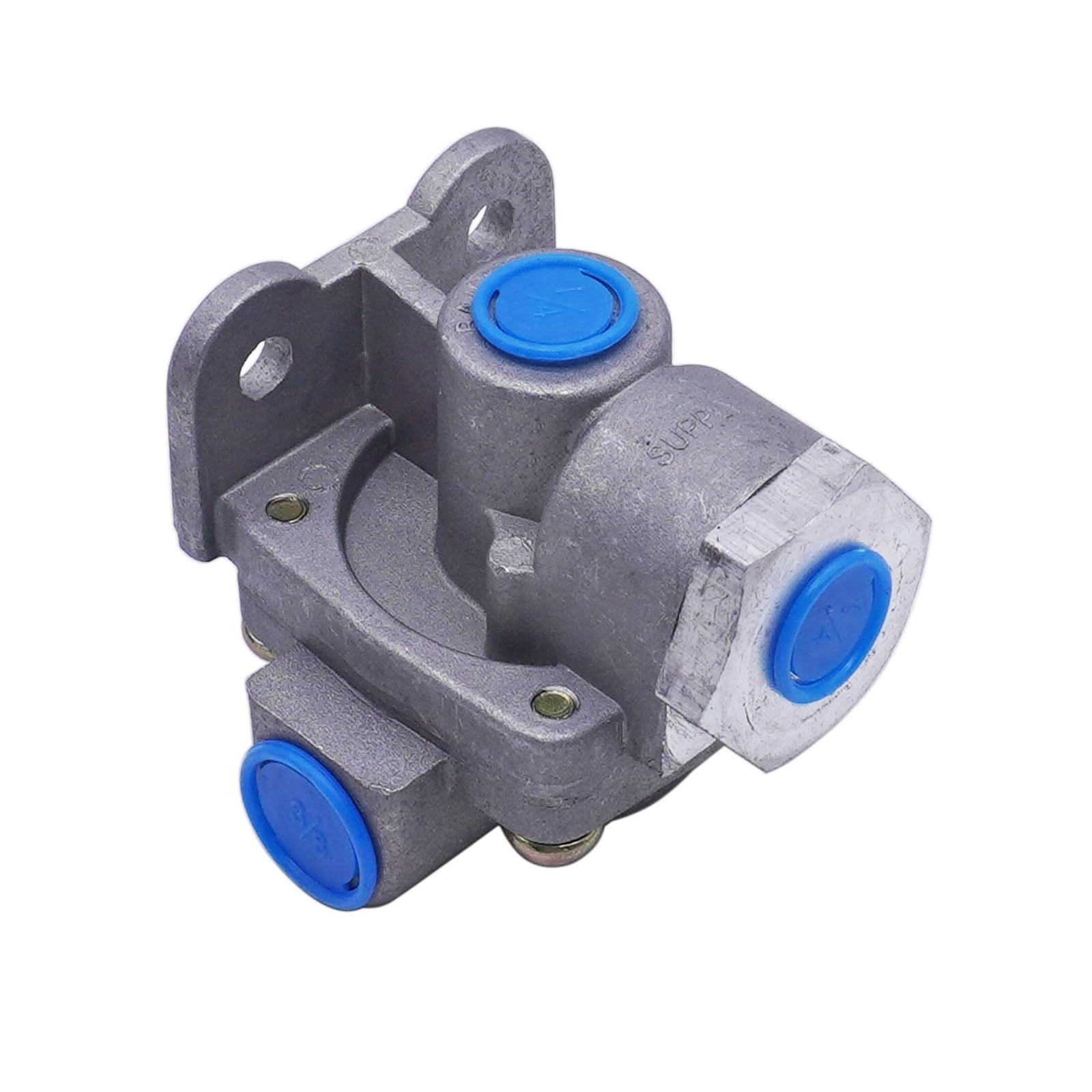

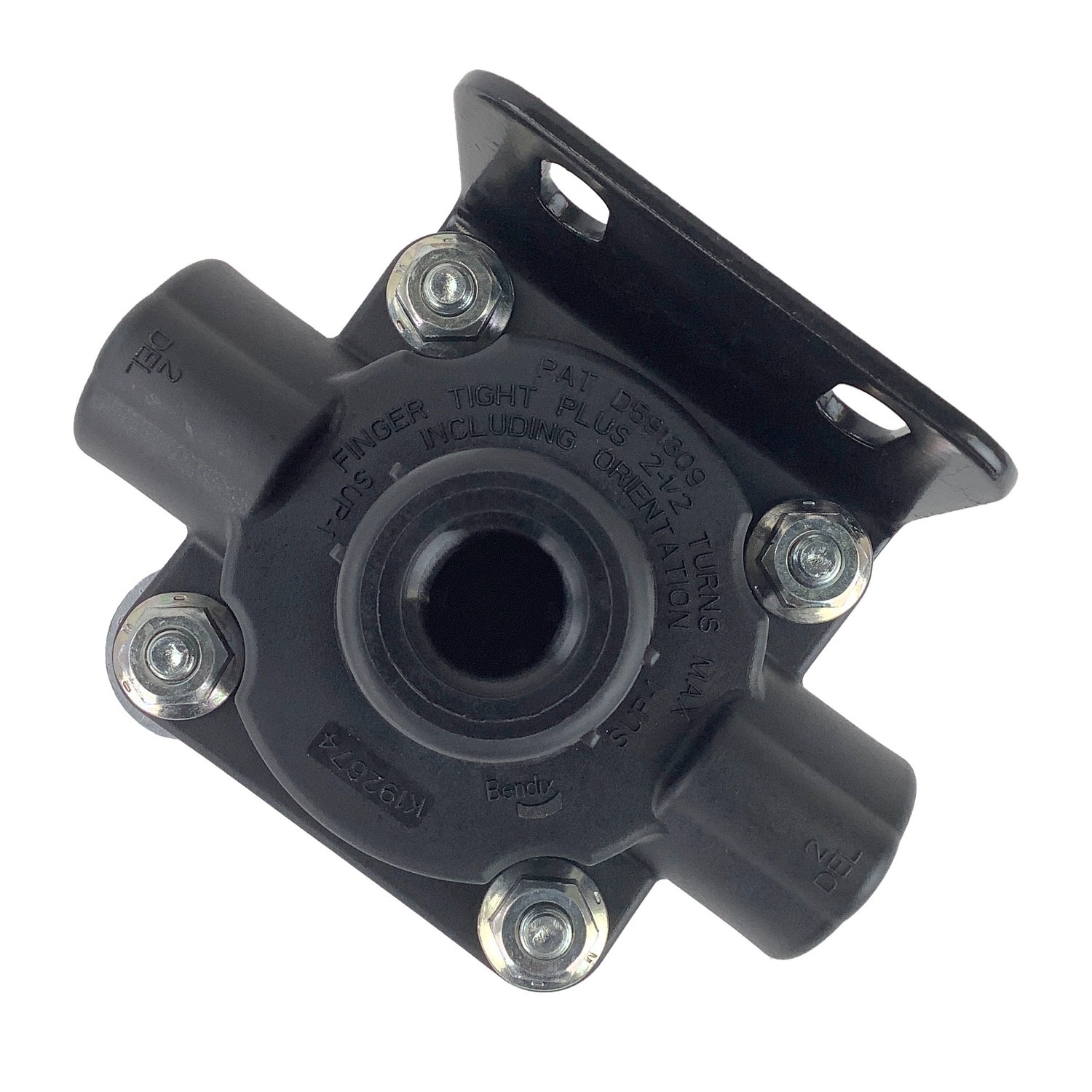

A Quick Release Valve (QRV) is a type of valve designed to quickly and efficiently release pressure in a system, allowing for rapid evacuation of air, fluid, or gas. These valves are typically found in pressurized systems where the immediate release of stored pressure is necessary to ensure the safety and operational efficiency of the equipment involved. The design of the QRV allows users to act quickly in emergency situations, making it an indispensable tool in both industrial and automotive settings.
Unlike traditional valves, which may require manual operation or more complex systems to regulate pressure, a QRV uses a simple mechanism to allow the rapid dissipation of pressure with minimal effort. This makes QRVs ideal for systems where the timing of pressure release is critical, such as in emergency brake systems, air suspension systems, or hydraulic circuits.
The function of a Quick Release Valve is to quickly relieve pressure from a system without the need for manual intervention. QRVs operate based on a spring-loaded mechanism that automatically opens when pressure reaches a certain threshold. Here's a breakdown of how a typical QRV works:
Pressure Accumulation: When fluid or gas is introduced into a system, the pressure builds up within a sealed chamber or pipeline.
Threshold Activation: Once the internal pressure exceeds a pre-set limit, the QRV's spring-loaded mechanism is triggered.
Pressure Release: The spring mechanism forces the valve to open, allowing the accumulated pressure to escape quickly.
Automatic Reset: Once the pressure is released, the valve typically closes automatically, returning the system to its normal operating state.
This simple yet effective process helps maintain system stability and protects sensitive equipment from potential damage due to overpressure.
Quick Release Valves consist of several key components that work together to achieve their primary function of rapidly releasing pressure. Understanding these components is crucial for those who operate or maintain systems with QRVs. Here are the main elements:
Valve Body: This is the main housing of the QRV and is where the pressure relief mechanism resides. It is typically made from durable materials like stainless steel or brass, designed to withstand high pressures.
Spring Mechanism: The spring inside the valve determines when the valve will open. It is calibrated to release pressure only when the internal pressure exceeds a specific limit.
Seal: The seal is responsible for maintaining a tight closure when the valve is not in operation, preventing any unwanted leakage of pressure.
Actuator: In some QRVs, the actuator helps to trigger the release mechanism by responding to the pressure levels in the system.
Release Port: The release port is where the fluid, gas, or air is expelled when the valve opens.
These components work in harmony to ensure that the quick release valve functions as intended, providing timely pressure relief without the need for manual intervention.
Quick Release Valves are widely used across multiple industries due to their ability to rapidly release pressure and prevent system failures. Below are some of the most common applications where QRVs play a crucial role:
Automotive Systems: In vehicles, QRVs are often found in air suspension systems, tire inflation systems, and emergency brake circuits. They allow for the rapid venting of pressure when needed.
Industrial Machinery: QRVs are used in industrial pneumatic systems, hydraulic systems, and air compressors. They prevent overpressure conditions that could otherwise damage the equipment or cause operational failures.
Firefighting Equipment: Fire trucks and other emergency response vehicles often utilize QRVs to control pressure within their water pumps or hoses, enabling rapid deployment of water in critical situations.
Medical Devices: In medical gas systems, QRVs help regulate the pressure of gases like oxygen and nitrous oxide, ensuring that equipment such as anesthesia machines operates safely.
The versatility of quick release valves makes them an essential part of many critical systems.
Quick Release Valves offer numerous advantages that make them invaluable in systems requiring precise pressure control. Some of the primary benefits include:
Safety: By providing a quick and reliable way to release excess pressure, QRVs help prevent dangerous overpressure conditions that could lead to equipment damage or personal injury.
Efficiency: QRVs allow for the fast evacuation of gases or fluids, ensuring that systems can return to normal operating conditions without prolonged downtime.
Ease of Use: The automatic nature of QRVs eliminates the need for manual intervention, making them user-friendly and ideal for emergency situations.
Cost-Effectiveness: By preventing damage to critical system components, QRVs help reduce maintenance costs and downtime, resulting in overall cost savings.
Compact Design: QRVs are typically small and lightweight, making them easy to integrate into existing systems without requiring significant modifications.
These advantages make Quick Release Valves an essential part of modern systems, from automotive to industrial applications.
While both Quick Release Valves and standard valves are designed to control the flow of fluids or gases, they serve different purposes and function in distinct ways. Here's a comparison of the two:
| Feature | Quick Release Valve | Standard Valve |
|---|---|---|
| Pressure Control | Rapid release of pressure | Gradual control of flow |
| Operation | Automatic, triggered by pressure | Manual or controlled via actuator |
| Speed | Very fast release | Slower, more controlled release |
| Application | Emergency situations, high-pressure systems | Regular operation, non-urgent control |
| Complexity | Simple mechanism | May include complex components |
While standard valves are crucial for everyday fluid and gas management, Quick Release Valves are specifically designed for situations where pressure needs to be released rapidly, such as in emergency systems or high-risk environments.
When selecting a Quick Release Valve, it is essential to consider the specific needs of your system. Factors such as pressure requirements, fluid or gas type, and system size all play a role in determining the best QRV for your application. Here are some key considerations:
Pressure Rating: Ensure the QRV is rated for the maximum pressure your system can reach.
Material Compatibility: Choose a valve made from materials that are compatible with the fluids or gases in your system (e.g., stainless steel for corrosive materials).
Flow Capacity: The QRV should have an appropriate flow capacity to handle the required volume of fluid or gas.
Size and Installation: Ensure the valve fits within your system's design and is easy to install and maintain.
Response Time: Choose a valve with a quick response time, especially in high-pressure systems.
Choosing the right QRV ensures that your system operates safely and efficiently, preventing unnecessary damage and ensuring optimal performance.
Quick Release Valves play a critical role in many industries by offering an efficient and automatic way to relieve pressure in systems under high stress. Their simple yet effective design allows them to quickly and safely release accumulated pressure, preventing damage to equipment and ensuring the safety of operators. Understanding the function, components, and benefits of QRVs helps businesses select the right valve for their applications, improving system performance and reliability.
1. What is the main purpose of a Quick Release Valve?
A Quick Release Valve's primary purpose is to rapidly release excess pressure from a system, preventing damage to equipment and ensuring operational safety.
2. Can Quick Release Valves be used in all types of systems?
QRVs are most commonly used in pressurized systems, including automotive, industrial, and medical applications. However, their use depends on the specific pressure requirements of the system.
3. How does a Quick Release Valve differ from a standard valve?
Unlike standard valves, which control the flow of fluid or gas gradually, a QRV allows for the rapid release of pressure, making it ideal for emergency situations or high-risk environments.
4. What factors should I consider when selecting a Quick Release Valve?
Consider factors such as pressure rating, material compatibility, flow capacity, size, and response time when selecting the right QRV for your system.
5. Are Quick Release Valves maintenance-free?
While QRVs are generally low-maintenance, regular inspection is recommended to ensure that the valve is functioning correctly and to prevent wear on the spring or seal.
